Type:
Driven by Individual Motor
Driven by Line-shaft

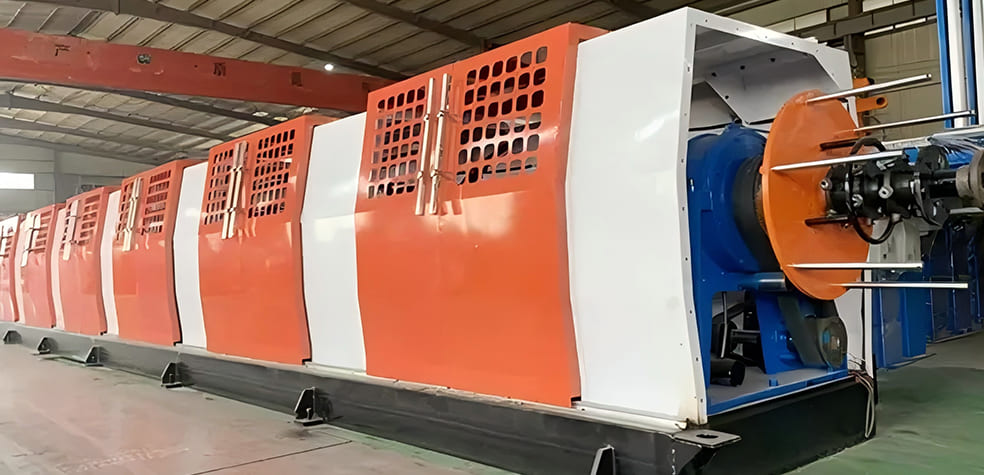

Application: The Skip Bow type Stranding Machine is used forstranding copper wire, aluminum wire, mild galvanized steel wire, and insulated cable core.
| Model | JGB 630(500)/1+6 | |
| Dia.of single wire | Copper | Φ1.35-5 mm |
| Aluminum | Φ1.5-5 mm | |
| Steel | Φ1.0-4 mm | |
| Max.Stranded Dia. | Φ15 mm | |
| Stranding Pitch | 6B | 31.1-372.7 mm |
| Max Rotating Speed | 6B | 800r/min |
| Capstan | Capstan Wheel Dia. | 1200 mm |
| Motor Power | 37KW | |
| Bobbin Size | PND 500 &PND 630 | |
| Center Pay-off Bobbin | PND 500 &PND 630 | |
| Take-up Bobbin | PN630-PN1600 | |
| Max.Linear Speed | 160m/min | |
