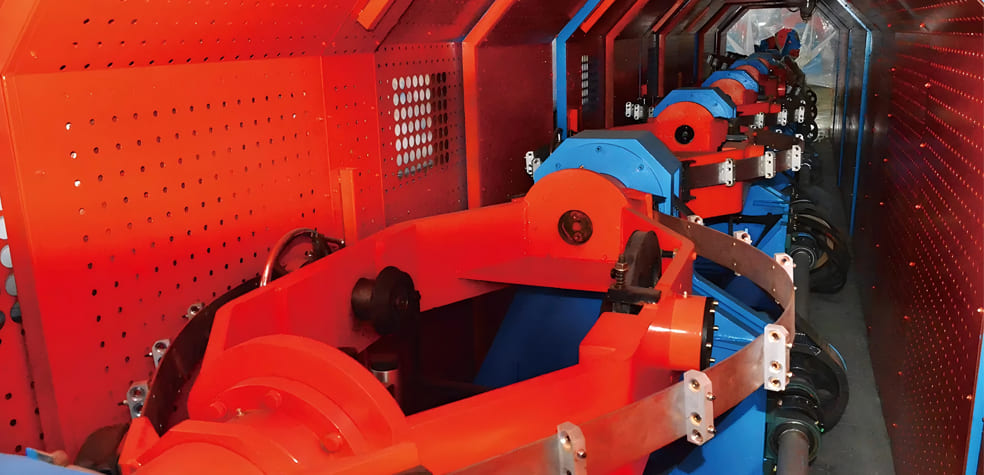

Skip Bow type Laying-up Machine

Type:
Driven by Individual Motor
Application:The Skip Bow type Laying- up Machine is used for laying-up the insulated round cable core.

Product Description

CGB Skip Bow type Laying up Machine						Unit:mm
Model	Technical Data			Tapping Machine	Caterpillar	Take-up	Center Height
	Max. Inlet wire Dia	Outletwire Dia.	Laying-up Pitch
630/1+3	10	24-30	36-500	500	800	800/1600	1000
630/1+4
630/1+5
630/1+6
800/1+3	12.5	32-37	90-1500		1250	1000/2000
800/1+4
800/1+5
800/1+6
1000/1+3	16	40-48	150-2000		1600	1250/2500
1000/1+4
1000/1+5
1000/1+6
1250/1+3	20	48-60	150-2000		2000	1250/2500
1250/1+4
1250/1+5
1250/1+6
1600/1+3	25	60-75	500-4000		2500	1600/3150
1600/1+4
1600/1+5
1600/1+6
