No drawing powder,green and environmental protection.
The main engine adopts direct drive technology,low speed,high torque,no reducer,no belt,
No mechanical brake,high efficiency and energy saving,reducing land occupation and maintenance costs.

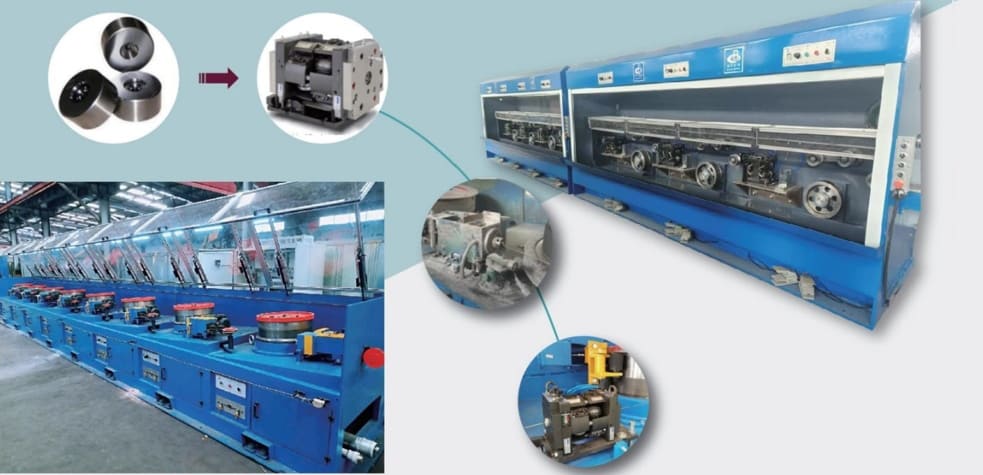

Advantages of roller mode wire drawing machine:
1.The roling technology is used for wire drawing,replacing the wire drawing die,and the internal structure of the wire is uniform. 2.The rolling friction of the roller mold is small,the speed is increased,and the energy is saved.
3.Reduce downtime for mold change,low failure rate,less maintenance and high efficiency.
| Machine type | BAOC300R | BAOC350R | BAOC400R | BAOC450R | BAOC500R | BAOC560R | BAOC600R |
| Inlet wire strength/MPa | ≤1350 | ||||||
| Roller dies No. | ≤13 | ≤13 | ≤13 | ≤13 | ≤13 | ≤13 | ≤13 |
| Wire inlet/mm | 2.8 | 3.5 | 4.2 | 5.0 | 5.5 | 6.5 | 8 |
| Wire outlet/mm | 0.5 | 0.6 | 0.75 | 1.0 | 1.2 | 1.4 | 1.6 |
| Max drawing speed/(m/s) | 20 | 20 | 25 | 25 | 25 | 18 | 15 |
| Main motor/(KW) | 5.5~7.5 | 5.5~11 | 11～15 | 11~22 | 15~30 | 22～45 | 30~55 |
| Transmission type | Servo motor directdrive | ||||||
| Adjustthe speed | AC servo drive | ||||||
| Control method | Shared DC bus control system | ||||||
| Pay-off method | I-shaped wheel pay-off machine,elevated pay-off,
one-line pay-off,duckbill pay-off,can realize non-stop pay-off |
||||||
| Take-up method | I-shaped wheel take-up machine,elephant trunk type
take-off machine,inverted take-up machine,can realize non-stop take-up |
||||||
| Main function | /It can realize the automatic stop function of broken
wire or messy wire,and each device is equipped with an independent protective cover to monitor process parameters and fault parameters
|
||||||
| Applicable drawing material | Various carbon steel,titanium wire,titanium alloy,
magnesium copper,brass,aluminum magnesium alloy, nickel wire,welding wire and other special alloy materials with high tensile strength are drawn. |
||||||
