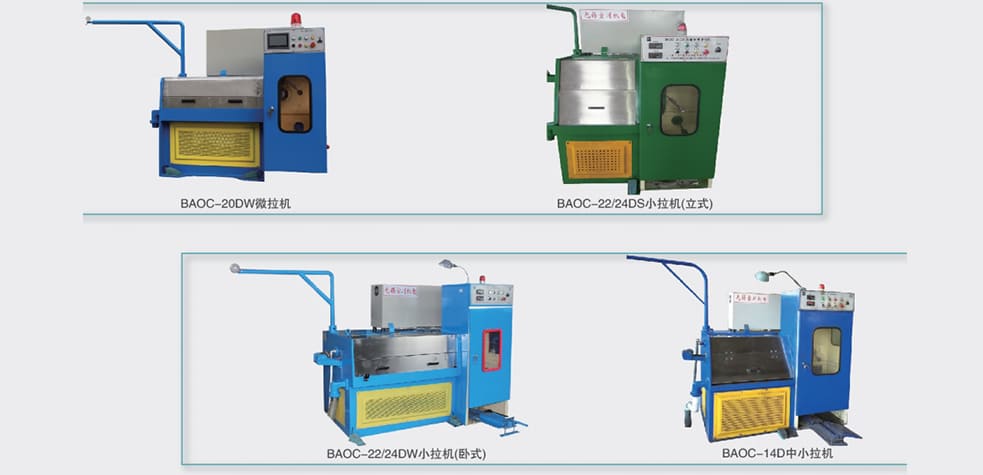

| Moaenb Machine type | BAOC20D/W | BAOC22DS/W | BAOC24DS/W | BAOC14DS |
| Wire finished | Φ0.05-Φ0.12mm | Φ0.1-Φ0.4mm | Φ0.08-Φ0.3 | Φ0.25-Φ0.65 |
| Wine inlet | Φ0.15-Φ0.4mm | Φ0.6-Φ1.2 | Φ0.5-Φ1.2 | Φ0.8-Φ1.6 |
| Drawing line speed | 1800mpm/max | 2500mpm/max | 2500mpm/max | 1200mpm/max |
| Drawing dies No. | 20 | 22 | 24 | 14 |
| Slip ratio of m/c/ | 10.5%+6% | 15%+8% | 13%+8% | 15%+8% |
| Frame | Lroned cast | |||
| Capstan | Ceramic coated | |||
| Extension line wheel arrangement | Four capstans(vertical) | |||
| Four capstans(Horizontal) | ||||
| Main motor | 3.7kw | 11KW/15KW | 11KW/15KW | 15kw |
| Spooler motor | 2.2kw | 3.7kw | 3.7KW | 3.7kw |
| Transmission type | Flat belts | |||
