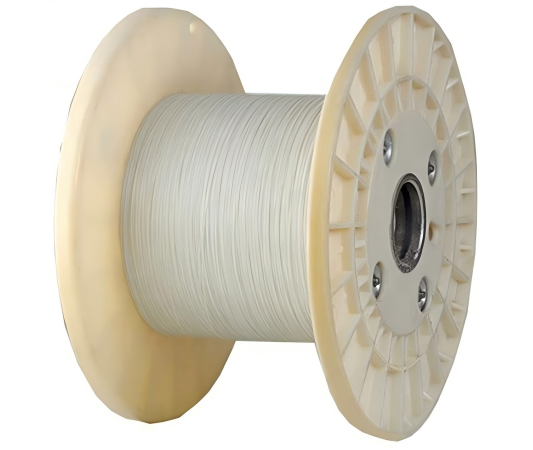

Strength member for fiber optic cables, usually located at the center of fiber optic cables, is one important component of fiber opticcables by supporting optic fiber bundle and enhancing cables tensile strength. Traditionally strength member is metal wire. Non-metallicFRP strength member are widely used in various fiber optic cables due to their advantages like low weight, high strength, anti-corrosionand long service life.
Product size: 0.4mm-4.0mm
Length:25.2km/drum,50.4km/drum, customized
Product type: normal FRP,FLAT FRP,FRP with EAA coating
Technical Data
| FRP Test Item | Unit (or Condition) | Technical Parameter |
| Appearance | Smooth surface, no bur, no crack | |
| Diameter Tolerance | % | +/-2 |
| Density | g/cm3 | 2.05~2.15 |
| Tensile Strength | Mpa | ≥1100 |
| Elastic Tensile Modulus | GPa | ≥50 |
| Bending Strength | MPa | ≥1100 |
| Flexural Modulus | GPa | ≥50 |
| Elongation at Break | % | ≤3 |
| Coefficient of Linear
Expansion |
1/°C(-30°C ~+80°C) | ≤8×10^-6 |
| Heat Shrinkage | % | 0 |
| Water Absorption | % | ≤0.1 |
| Minimum Instantaneous
Bending Radius |
mm(20°C ±5°C) | 25D |
| High Temperature
Bending Performance |
(50D,100°C，120h) | No bur, no crack, no break, smooth surface, back to original straight |
| Low Temperature Bending Performance | (50D,-40°C，120h) | No bur, no crack, no break, smooth surface, back to original straight |
| Twisting Test | +/-360°/m | Non-disintegration |
