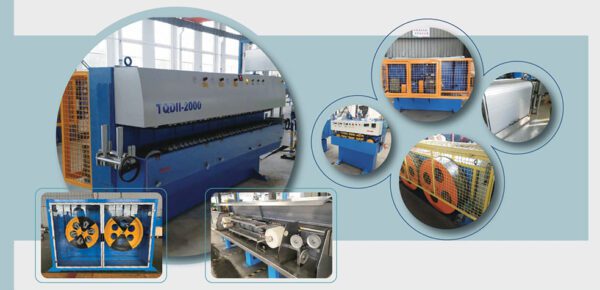

The equipment is used for wire, cable and wire traction. There are two types: track-type (crawler) and wheel-type.
Track-type：
Max. traction force from 200kg-4000kg
Cable dia. from ≤Φ15-≤Φ180
Track contact length from 250mm-3500mm
Track width from 60mm-220mm
Quantity of cylinders from 1-10
Wheel-type：
Max. traction force from 150kg-700kg
Cable dia. from ≤Φ1-≤Φ40
Number of wheel grooves: 4+5
Motor power from 1.5kw-11kw
Traction wheel dia. 200-1000mm
We can customize as per customers’ special demand.
